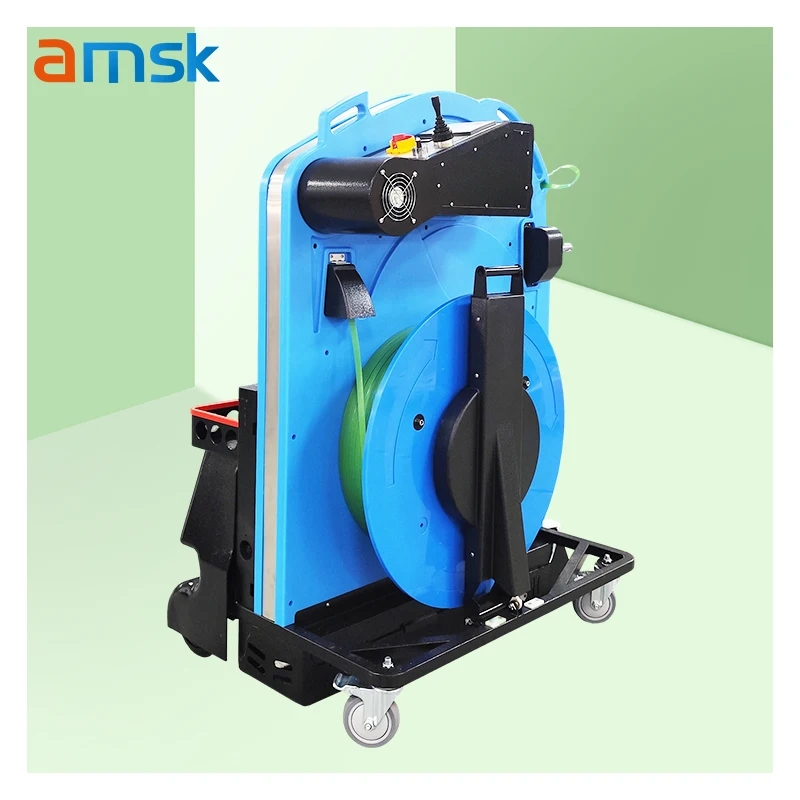

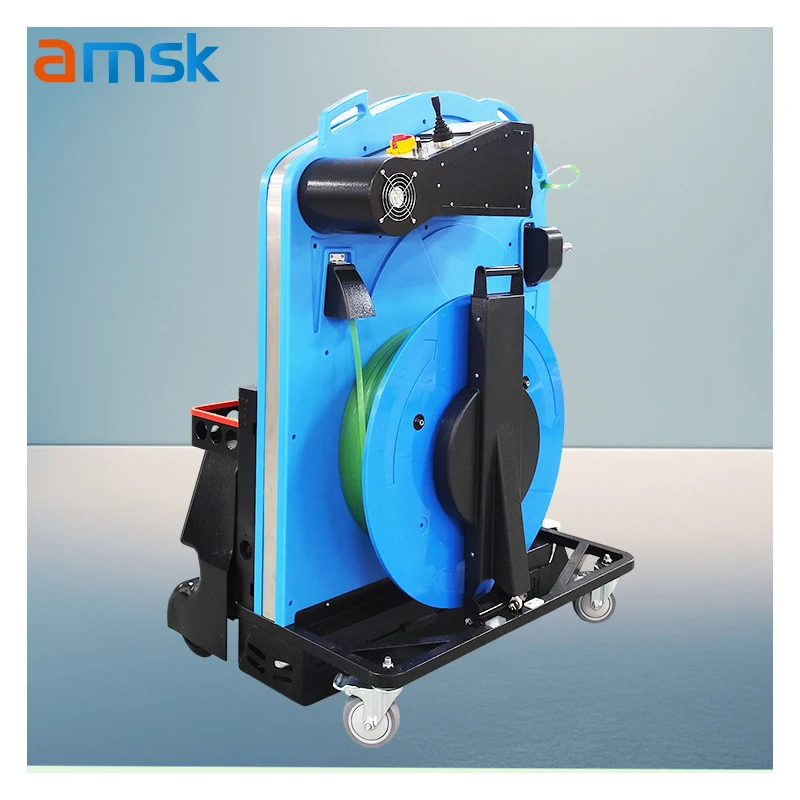

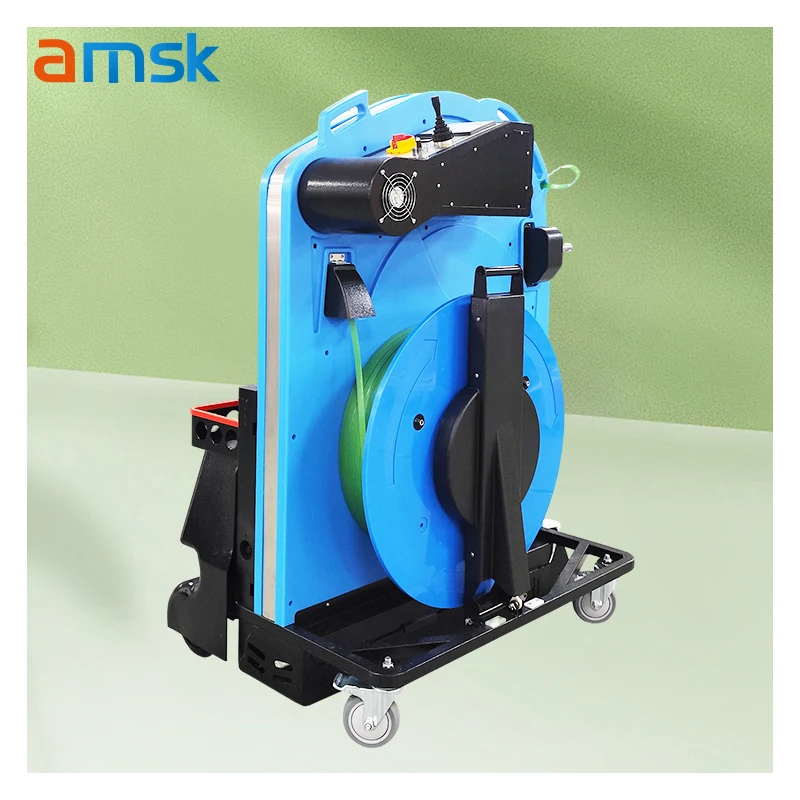

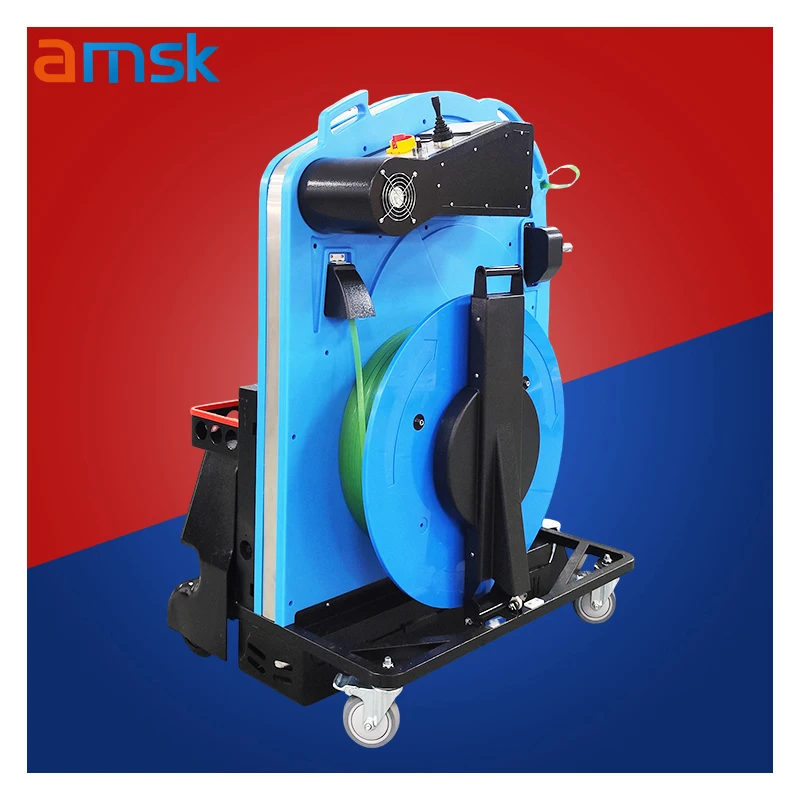

- Model: JD-008
- Weight: AC100-240V;50HZ~60HZ
- Dimensions (Specifications): 950*750*1250(MM)
- Applicable Packing Material: PP/PET
- ApplicablePackingBelt Width: 12-19 (MM)
- Applicable Packing Belt Thickness: 0.6-1.3 (MM)
- Volume of Strapped Object: WO.7M-1.8M/H0.9M-3M
- Strapping Frequency: ~600
| Machine Parameter | |
| Machine Model | JD-008 |
| Weight | 105kgs |
| Machine Dimensions | 950*750*1250mm |
| Strap Material Supply | PP/PET |
| Strap Thickness | 0.6mm-1.3 mm |
| Strap Width | 12mm-19mm |
| Strap Roll Size |
PP strap inner Φ200mm, height 180mm PET strap inner Φ406mm, height 150mm |
| Case Size | width ≤2000mm, height ≤3000mm |
| Max. Noise | 79db(A) |
| Frequency | 600 times/ One Charge |
| Working Voltage | DC23.6-DC28.8V |
| Chain Length | 9300mm |
| Max. Thrust | 320N |
| Maximum chain speed (normal mode) |
Horizontal out (40M/min), vertical out (60M/min) Horizontal in (54M/min), Vertical in (44M/min) |
| Maximum chain speed (change chain mode) | Out (20M/min), in (16M/min) |
| Minimum tray foot height | 75mm |
| Minimum tray foot weight | 200mm |
Pre-Sale Service |
·Provide the customer with the technical parameters of the machine in question. |
·Prepare general formulation based on the material costs provided by our clients. |
·Provide specialized machines to meet the specific needs of our clients. |
·24 hours online service. |
After-Sale Service |
·All parts codes are archived and stored in the ERP system to provide fast after sales service. |
·Provide clients with an allocation chart & an operation manual. |
·Send complete shipping doc. by DHL and help follow ship. |
·Provide video tutorials for customers. |
